Automated assembly line for 30mm HE/I and HE/T

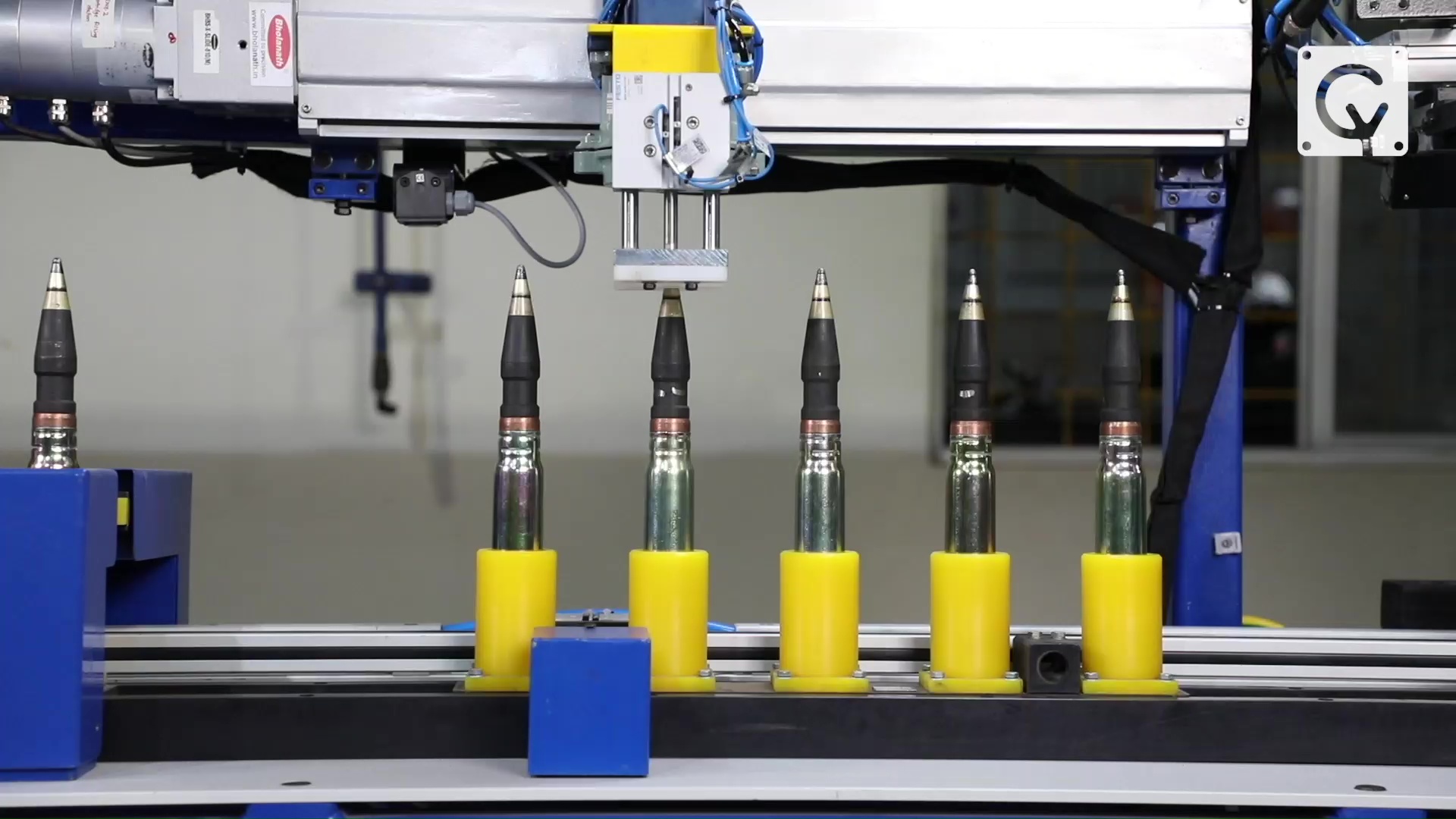

Cybernetik’s automated assembly line for 30mm HE/I (High Explosive Incendiary) & HE/T (High Explosive Tracer) is designed to carry out safe, accurate, and high-efficiency assembly through a seamless integration of precision processes and stringent quality checks.
Our solution integrates SCADA for real-time monitoring and control and combines automated, semi-automatic, and manual stations to maximize operational consistency and throughput. Built to meet ATEX and CIMFR safety standards, the system is structured for smooth execution of all key processes with user-friendly interfaces and built-in flexibility.
Grow Your Business
Bring the power of industrial automation to your wind energy business.
Assembly Line
Cartridge Case & Primer Assembly Line
Propellant Filling, Filled Cartridge & Filled Shell Assembly Line
Fuze Assembly & Final Inspection Line
Automatic Shell Pressing Line
System Features

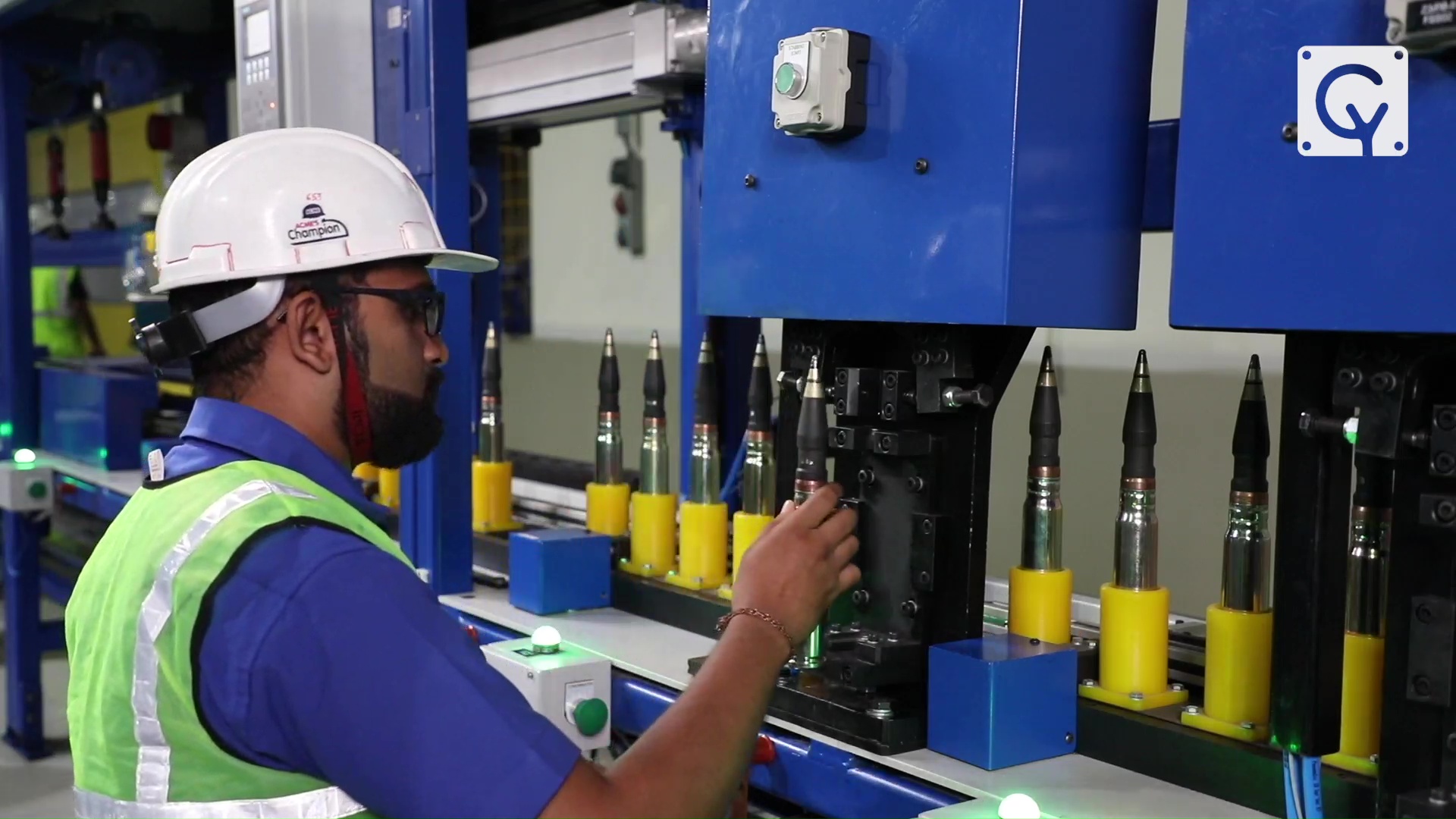

- Mix of automated, semi-automatic, and manual stations spread across 3 zones.
- Inspection stations: Primer tightening and stabbing, propellant weighing, pellet depth, shell height, round weighing.
- Pneumatic tightening and stabbing fixture.
- Zone 1: for primer installation, stabbing, and checking.
- Zone 2: for propellant filling and checking.
- Zone 3: for pellet and fuze insertion and checking.
- Zone 4: for automatic shell pressing line.
- SCADA System: effective monitoring and control.
Ammunition Handled
HEI

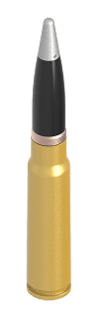

HET
Technical Specifications
| Parameter | Value |
|---|---|
| Throughput | 48 rounds / hr |
| Rounds Dimensions | 293 mm (L) x 30 mm (dia) |
| Footprint | 19 x 38 x 3.5 m (when all 3 zones in a single hall) |
| Compressed Air Pressure | 6 kg/cm 2 (dry air) |
| Electrical Power | |
| • Drive Motor | • 415 V ± 10 % x 50 Hz ± 2 % x 3 Phase x 3 WIRE |
| • Control Panel | • 415 V ± 10 % x 50 Hz ± 2 % x 3 Phase x 4 WIRE |
| • Illumination | • 230 V ± 10 % x 50 Hz ± 2 % x 1 Phase x 2 WIRE |
